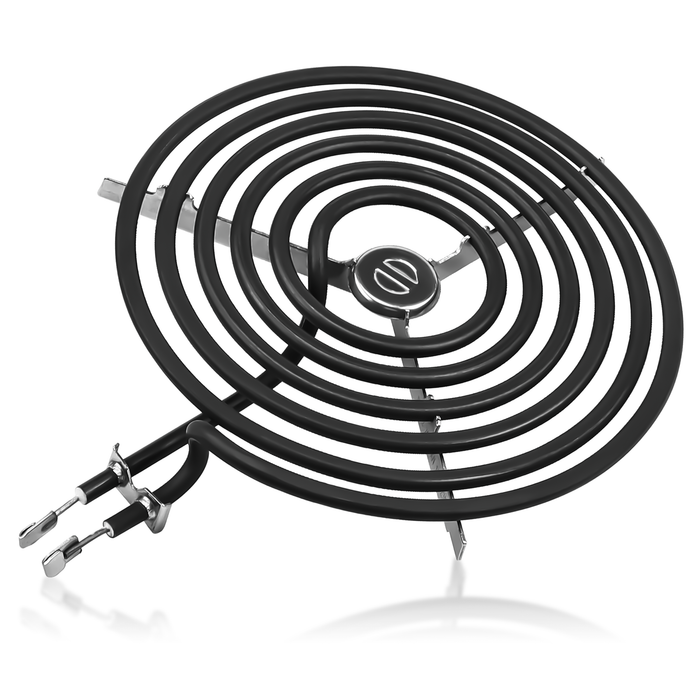

Beaquicy 8-inch WB30M2 Coil Heating Surface Burner Elements for Stove Top with 6 Turns
Replace Part No.: Stove Burner Pans CH30M2 WB30M2 6 Coil 8 Inch Large Electric Range Surface Element, Plug-in terminals; 6 Coils, 240V/208V, 2350W/1765W. WB30M2 6 turn 8" Range Surface Heating Element: This 8-inch surface element provides efficient heat for cooking and boiling, perfect for larger pots and pans, offering robust and even heating capabilities. Replaces Part Numbers: EA243868, 2797, 340524, AH243868, PS243868, WB30K5027, WB30M0002, WB30X5072, WB30X5120, WB30X5122, WB30X5130, B003BNZ4Z4. . Material: Made from high temperature stainless alloys. Our surface element supplies heat to the cooking area and uses high performance heat conducting material, which can heat up quickly and make cooking more convenient. You may need to replace your stove heating element if it won't heat up or won't heat up evenly.
CH30M2 WB30M2 6 Coil 8 Inch Large Electric Range Surface Element
6 Turns 8 Inch Large Surface Burner Element

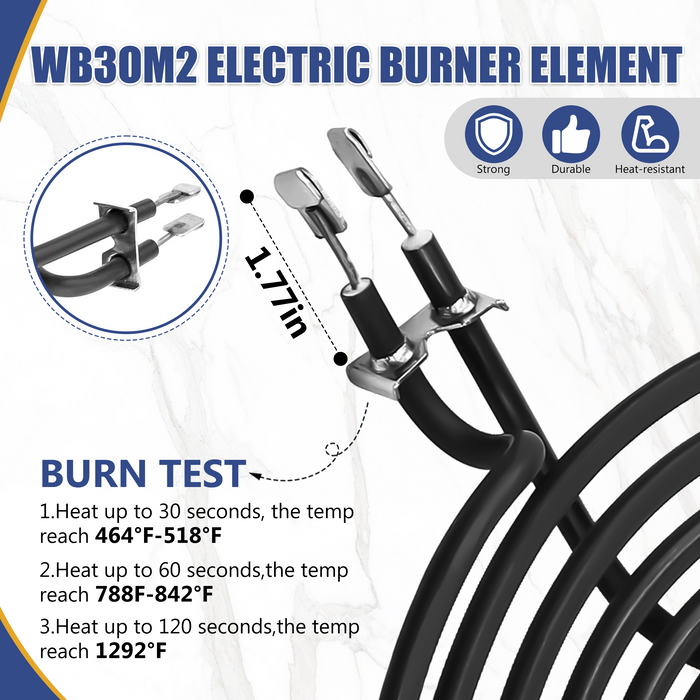

Plug-in terminals, 240V/208V, 2350W/1765W

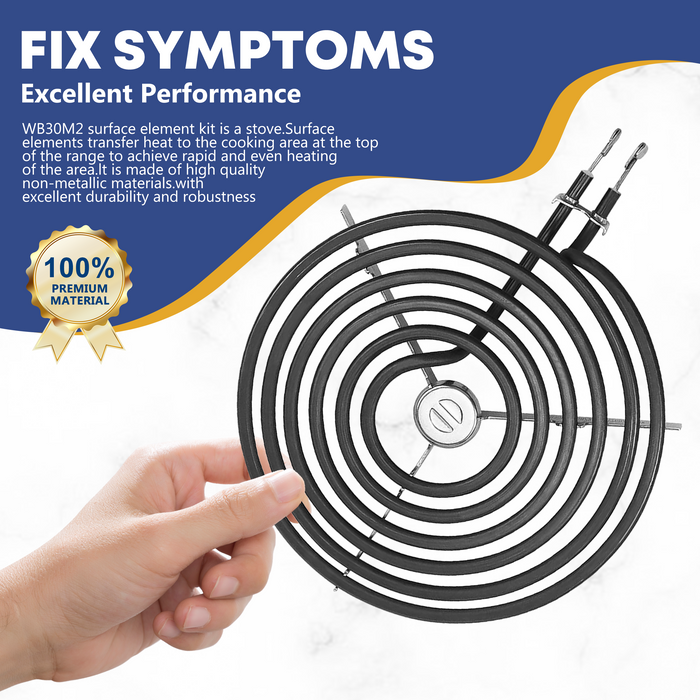

The coil surface element supplies the heat to a cooking area on top of the range
The burner element has a "Y" shaped bracket
Fits models: JP328SK2SS, JP328WK2WW, JXDC41001, J63CK1, JB390GxH1, JB391GxH1, JB391GxJ1, JB391GxJ3, JB391GxJ4, JB391GxK1, JB400GxH3, JB400GxH4, JB400GxH5, JB400GxH6, JB400GxJ1, JB400GxJ3, JB400GxJ4, JB400GxK1, JB400GxK2, JB450GK1, JB450GK2, JB450GN2, JB450GP1, JB450GxJ2, JB450GxJ3, JB450GxK1, JB450GxK2.

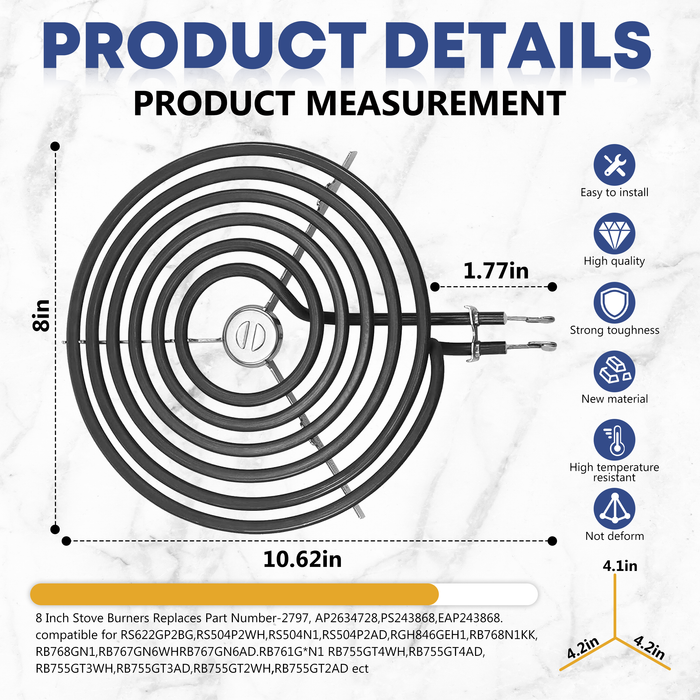

Stove top coil heating element. The element is 8" in diameter. If the surface element won't heat, either the surface element or the surface element switch may be defective. To determine if the surface element is defective, use a multi-meter to test it for continuity. Please disconnect the power when repairing.
Replacement Instructions: Turn off the power Push the new coil element into place. The tip of the coil element is pushed into the terminal socket under the stove. Tilt the coil element slightly upward and pull it straight out of the socket. Return power to range.
